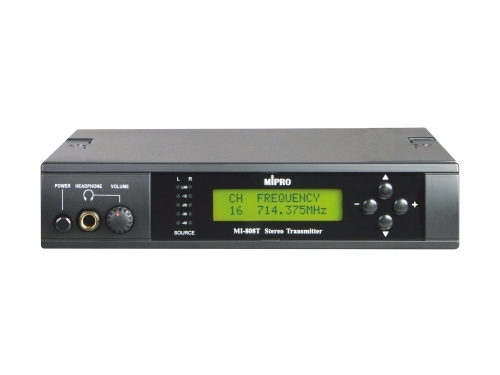

MIPRO MI-808T

Model: MI-808T

Giá liên hệ

Trạng thái : Còn Hàng
Đặt hàng

Form Đặt hàng

Mô tả

  • Multi-function LCD panel.
  • EIA standard 1/2U rack-mountable metal chassis.
  • Balanced and unbalanced combo jack.
  • Mono and Stereo operating modes.
  • UHF PLL Synthesized circuit.
  • 16 preset channels in 24 MHz band.
  • Dynamic compander circuitry delivers S/N ratio greater than 90 dB.
  • Built-in level limiter prevents distortion at the maximum input level.
  • Monitoring headphone jack.
  • Multi-language interpretation system application. Simple interface for easy operation.

Thông số kỹ thuật

Frequency Range UHF 620 – 874MHz
  Bandwidth 24 MHz
  Oscillation Mode PLL Synthesized
  Channel Grid 25 kHz
  T.H.D. <1% (at 1kHz, Max. deviation)
  Frequency Response 80 Hz – 15 kHz
  Modulation Type FM stereo modulation
  Spurious Emissions <4 nW
  RF Output Power Switchable Low <10 mW, High <100 mW (country dependent)
  Audio Input Jack 2× Combination XLR & 6.3 mm (1/4") TRS
  Audio Output Jack 2× 6.3 mm (1/4") TRS
  Earphone Output Jack 6.3 mm (1/4") stereo phone jack with volume control
  Earphone Output Impedance ≧16 Ω
  Antenna Connector TNC (50Ω impedance)
  Power Supply 12 – 15 V DC
  Dimensions (W × H × D) 210 × 44 × 206 mm / 8.3 ×1.7 × 8.1 "
  Weight Approx. 1.1 kg / 2.4 lbs





Thông tin chi tiết vui lòng truy cập:http://www.mipro.com.tw/p4_en.html?gid=102
